Ȩ>ǰ>Accura Series>Accura9

Ȯ뺸
ڵ
ٷ з Ͽ з, Ũ ڵϱ ⷮ Ȯմϴ.
ڵ ɿ ʱ ܴ Է մϴ.
ڵ ž縦 Ͽ ٷ ܷ  ڵ ɡ īƮ ǥ žϿϴ.
RS232C , մϴ.
ä (100ä) ͸ ְ Ũ  մϴ.









ȭ ⷮ ȭ

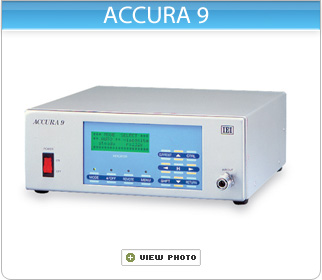

  ACCURA 9 ACCURA 9L
Air Source
Max. 740kPa non
Imbricated dry air
Max. 340kPa non
Imbricated dry air
Operating Air Pressure
3 ~ 490kPa 3 ~ 196kPa
Shot Time Range 0.030 ~ 99.999sec
Material Viscosity Range Low to high Low
Channel Memory Timed Mode : shot time, pressure 100ch.
Steady Mode : pressure 100ch.
Input Switch Internal voltage supply through a foot switch.
Transistor open collector input.
Operating Speed 600cycles/min
Power Consumption 12VA(MAX)

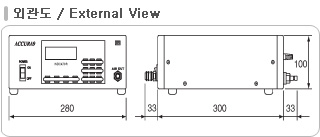

Overall Dimensions(mm) (W)280 X (D)300 X (H)100
Weight 8kg

Standard Accessories Qty
D Sub-Connector
plug with 37p
2
D Sub-Connector
plug with 9p
1
Metal outlet with 4P 1
Air Coupler 1
Power Cable Set 1
